Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine

Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine

Prodotti - stampatrice ondulata della scatola
  • Evidenziare

    automatic corrugated box printing machine

    ,

    flexo printing and slotter machine

    ,

    fruit pizza box die cutting machine

  • Nome del prodotto
    Macchina per stampa flessografica e fustellatura di scatole di cartone
  • Colori
    1~5 colori
  • Materiale per la stampa
    Cartone ondulato
  • Parole chiave
    Macchina per la produzione di scatole di cartone
  • punti chiave di vendita
    Multi colore
  • Tensione della macchina
    380 V/220 V
  • Regolare il coltello
    Controllo PLC
  • Tipo di piastra
    Stampante per lastre flessografiche
  • modello dell'alimentatore
    Alimentazione del bordo del piombo
  • Stile
    Stile sottovuoto
  • caratteristica
    Operazione conveniente
  • Grado automatico
    Automatico
  • Luogo di origine
    Heibei, Cina
  • Marca
    kspack
  • Certificazione
    CE
  • Quantità di ordine minimo
    1
  • Imballaggi particolari
    contenitore
  • Tempi di consegna
    all'interno di 45days
  • Termini di pagamento
    L/C,D/P,T/T,Western Union
  • Capacità di alimentazione
    10 set/mese

Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine

Ottieni prezzo Contattaci

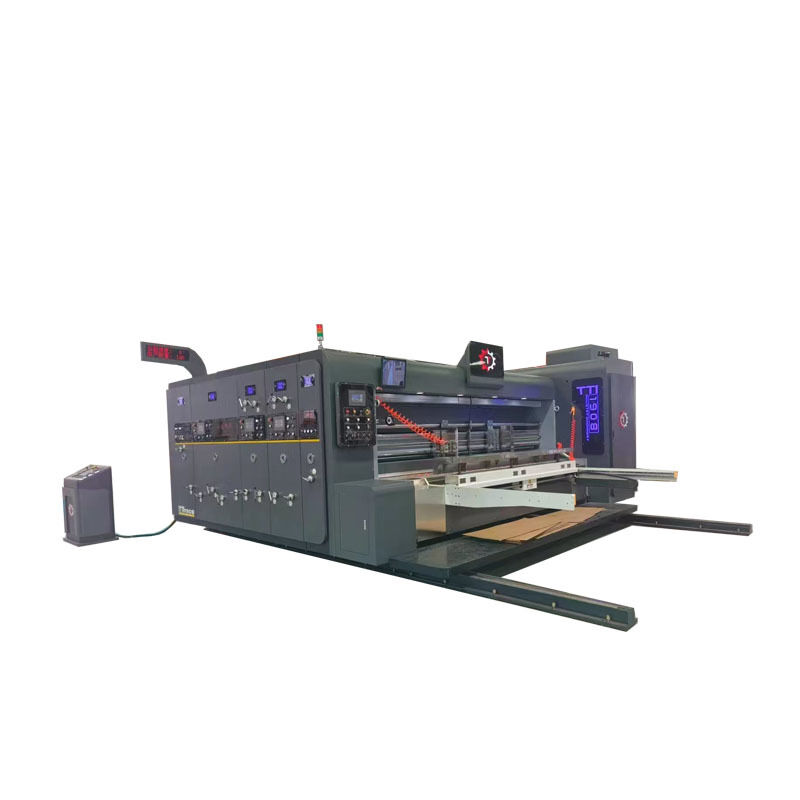

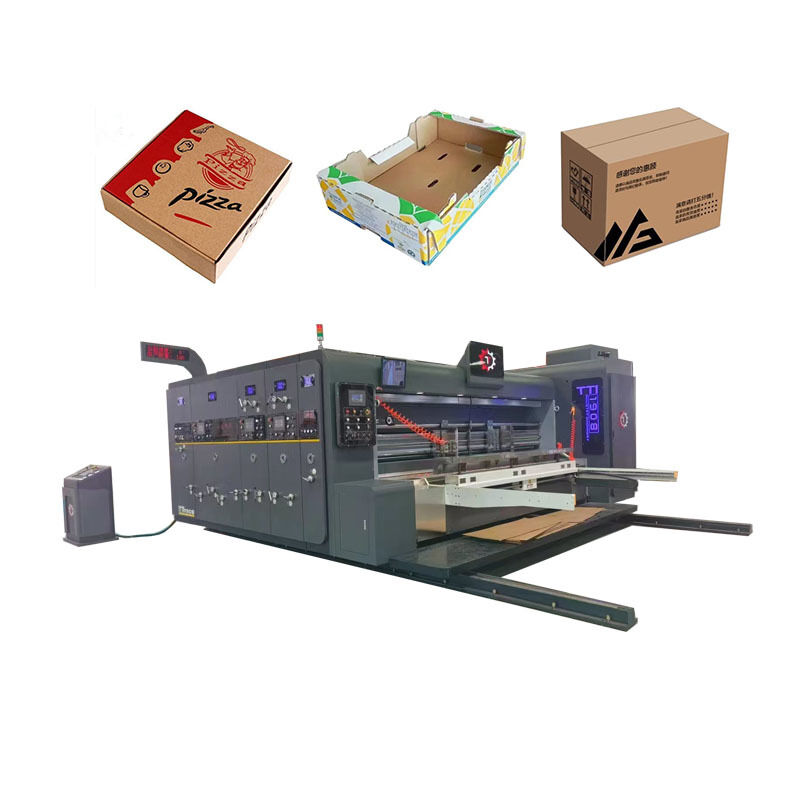

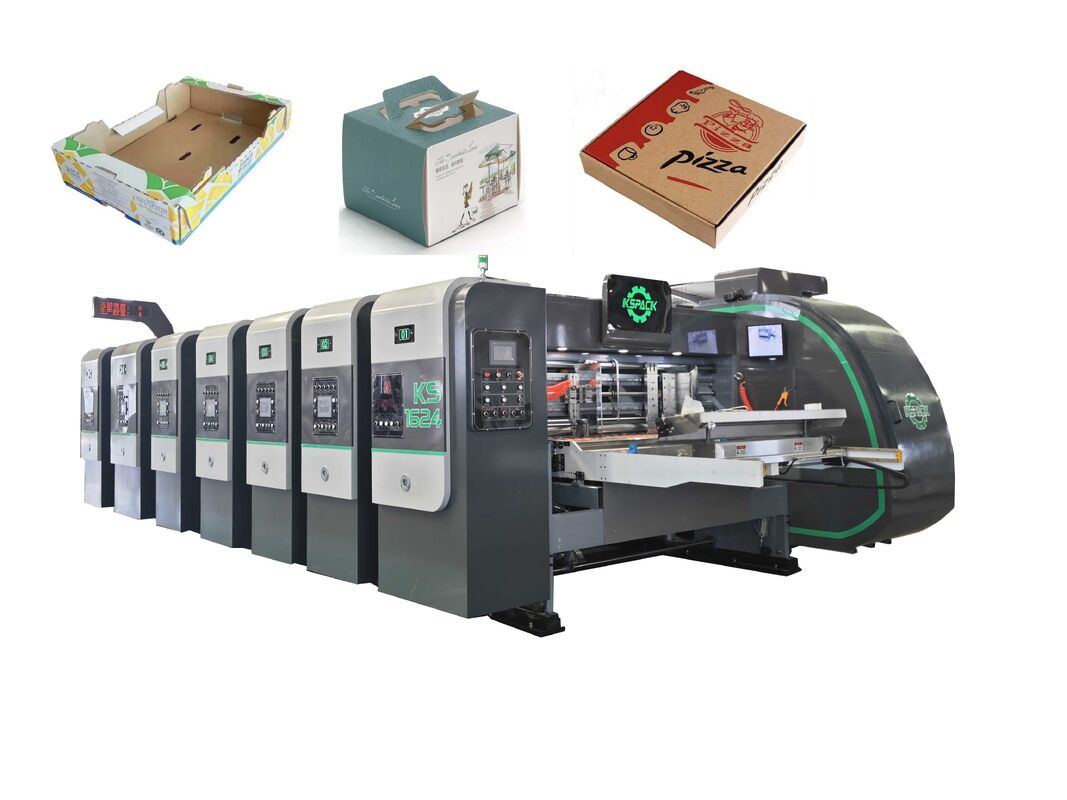

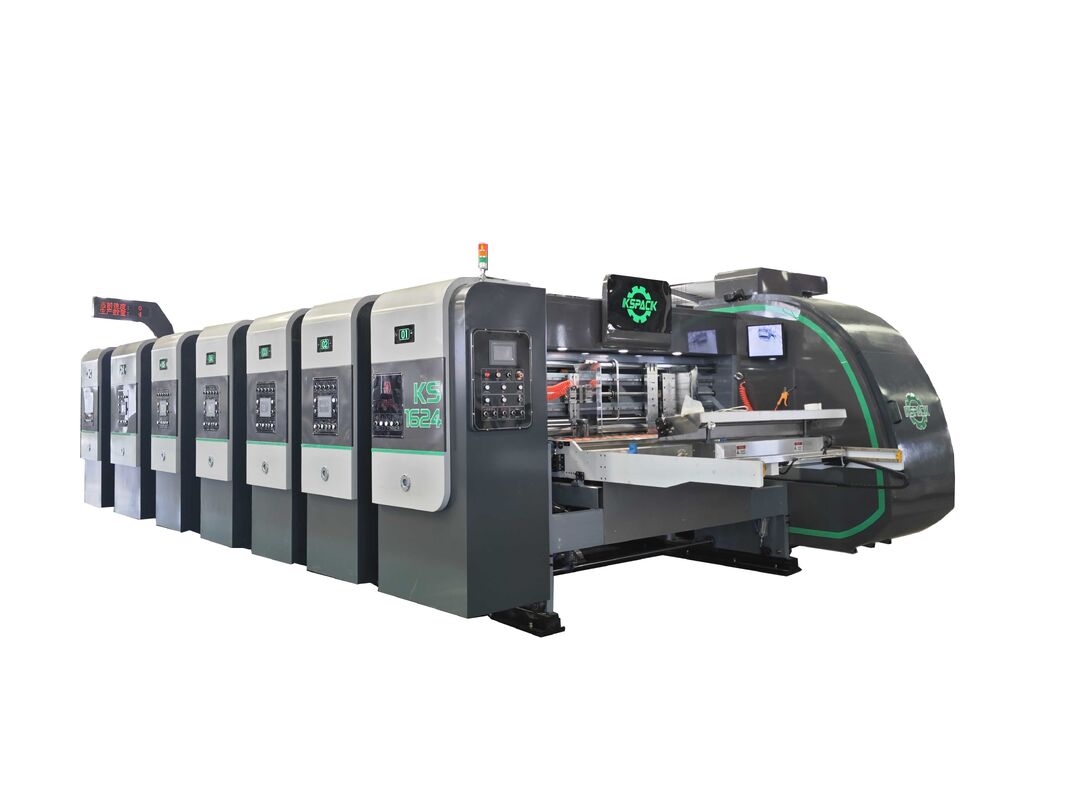

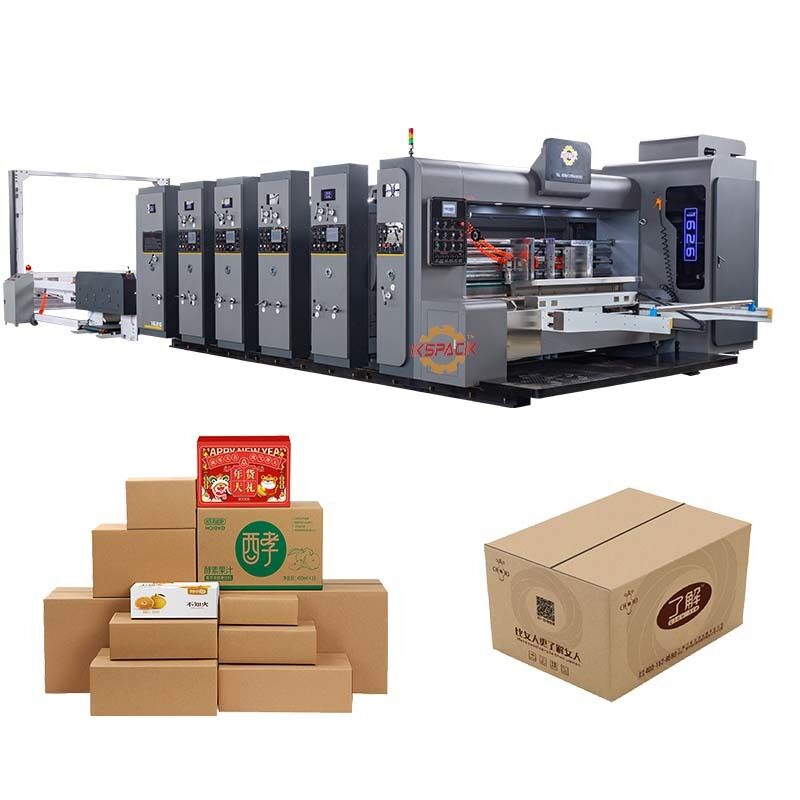

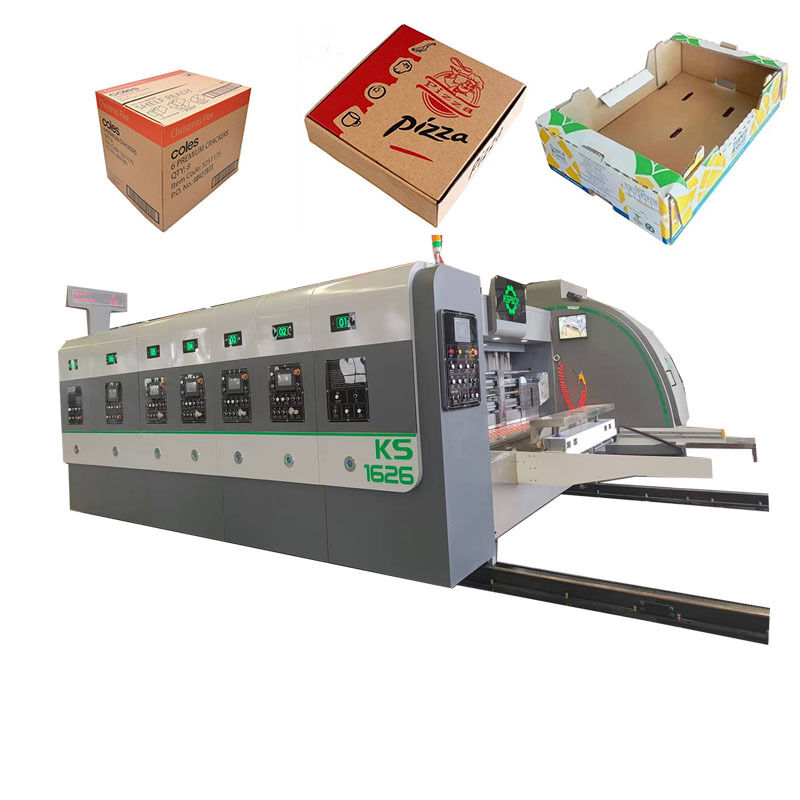

Flexo Printing and Slotter Machine - Automatic Corrugated Fruit Pizza Box Production
High-performance automatic flexo printing and slotter machine designed for efficient corrugated fruit and pizza box manufacturing. This PLC-controlled system integrates printing, die-cutting, and slotting operations in one streamlined process.
Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine 0 Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine 1 Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine 2 Flexo printing and slotter machine automatic Corrugated Fruit Pizza Box printing die cutting Making machine 3
Technical Specifications
Model PLC Control High Speed Printer Diecutter
Printer Color Multi Color
Machine Size Wall Board to Wall Board Size: 2000/2200/2400/2600/2800/3000mm
Design Speed 300 pieces/minute
Work Speed 250 pieces/minute
Machine Wall Board Size 60mm
Gear Thickness 60mm
Max Passing Paper Size 1200 × (1800/2000/2200/2400/2600/2800mm) for 408 diameter
1450 × (1800/2000/2200/2400/2600/2800mm) for 480 diameter
1600 × (1800/2000/2200/2400/2600/2800mm) for 530 diameter
Min Paper Passing Size 420 × 860mm (for 480 diameter)
380 × 860mm (for 408 diameter)
Skip Paper Size 1350 × (1800/2000/2200/2400/2600/2800mm) for 408 diameter
1600 × (1800/2000/2200/2400/2600/2800mm) for 480 diameter
Max Print Size 1200/1400 × 1600 (1600/1800/2000/2200/2400/2600mm)
Plate Thickness 3.2 - 7.2mm
Board Thickness 3 - 12mm
Print & Slot Accuracy Print: ±0.5mm / Slot Open Accuracy: ±1.5mm
Our Service
Comprehensive support including installation, training, maintenance, and technical assistance to ensure optimal machine performance and productivity.
